大口径灰色PN16灰色黑色20mm 600mm DIN定制方形圆形塑料CPVC导管排水管
产地：中国浙江
品牌名称：KXPV
材质：CPVC
规格：DN15--DN600
长度：4000mm
厚度：定制
标准：DIN
连接方式：Socket Fusion
包装：塑料薄膜
工作压力：PN10-16
颜色：灰色
原料：CPVC
尺寸：DN15-DN600
用途：工业
供货能力：100000米/月

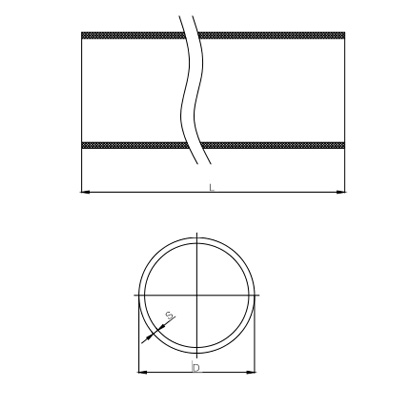

| CPVC 管 |
|
Inch |
D |
L |
S |
|||
|
mm |
mm |
PN1.6MPa |
KG/M |
PN1.0MPa |
KG/M |
|
|
1/2" |
20 |
4000 |
2.0 |
0.17 |
2.0 |
0.17 |
|
3/4" |
25 |
4000 |
2.3 |
0.25 |
2.0 |
0.22 |
|
1" |
32 |
4000 |
2.9 |
0.40 |
2.0 |
0.28 |
|
1-1/4" |
40 |
4000 |
3.0 |
0.52 |
2.0 |
0.36 |
|
1-1/2" |
50 |
4000 |
3.7 |
0.81 |
2.4 |
0.54 |
|
2" |
63 |
4000 |
4.7 |
1.29 |
3.0 |
0.85 |
|
2-1/2" |
75 |
4000 |
5.6 |
1.83 |
3.6 |
1.21 |
|
3" |
90 |
4000 |
6.7 |
2.63 |
4.3 |
1.74 |
|
4" |
110 |
4000 |
8.1 |
3.89 |
5.3 |
2.61 |
|
5" |
140 |
4000 |
10.3 |
6.29 |
6.7 |
4.21 |
|
6" |
160 |
4000 |
11.8 |
8.24 |
7.7 |
5.52 |
|
8" |
225 |
4000 |
16.6 |
16.29 |
10.8 |
10.90 |
|
10" |
280 |
4000 |
20.6 |
25.17 |
13.4 |
16.83 |
|
12" |
315 |
4000 |
23.2 |
31.89 |
15 |
21.20 |
|
14" |
355 |
4000 |
26.1 |
40.43 |
16.9 |
26.91 |
|
16" |
400 |
4000 |
29.4 |
51.32 |
19.1 |
34.27 |
|
18" |
450 |
4000 |
|
|
21.5 |
43.39 |
|
20" |
500 |
4000 |
|
|
23.9 |
53.59 |
|
24" |
630 |
4000 |
|
|
30 |
84.78 |
This standard is based on the national standard GB/T18998.2-2003, the length of pipe degrees can be customized according to customer needs.
